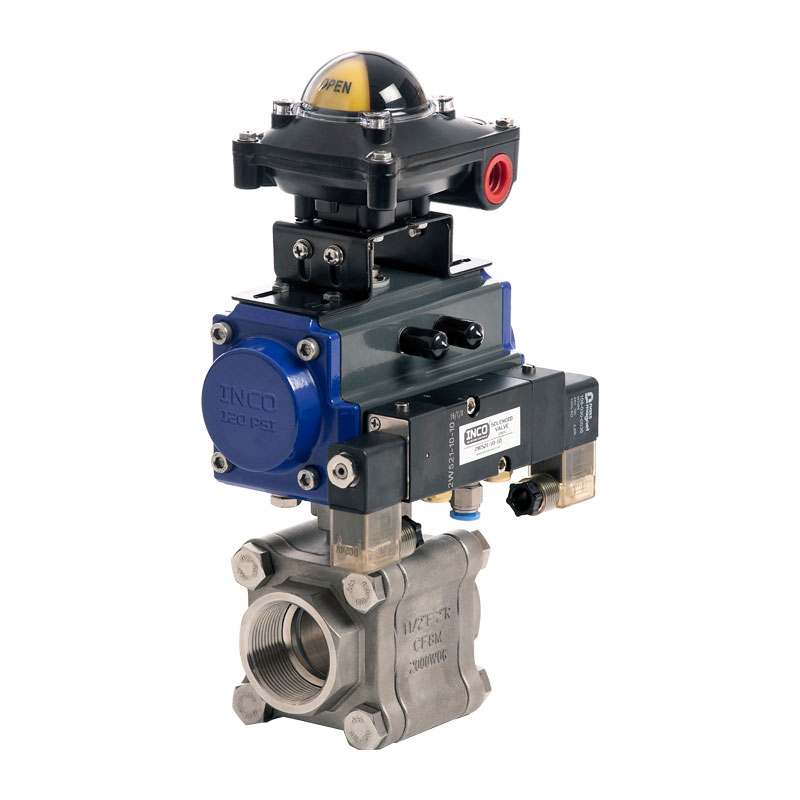

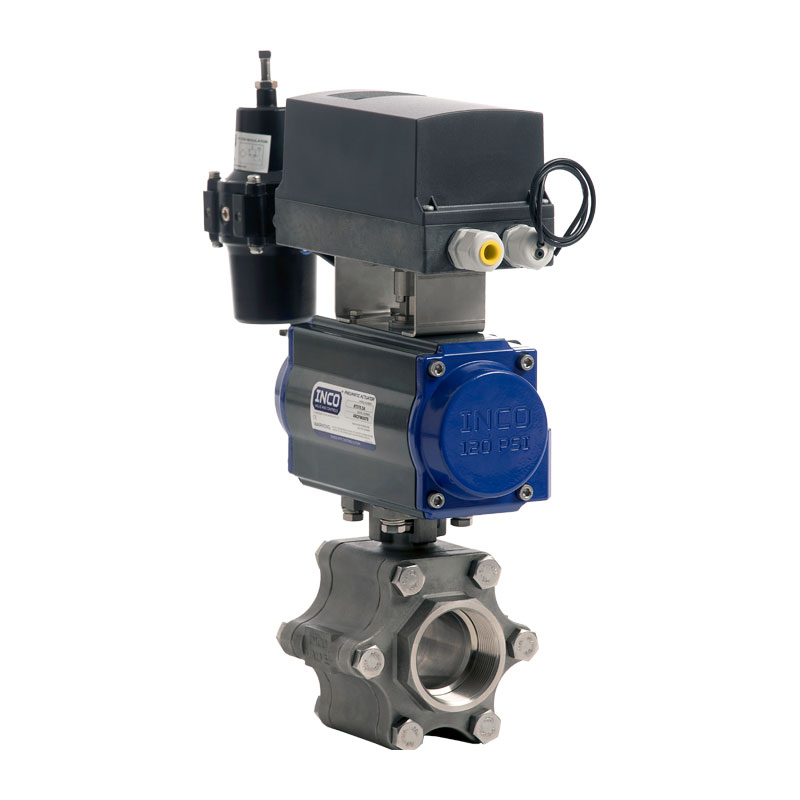

SERIES 134 High Pressure Three-Piece Ball Valve
GEAR OPERATORS
The INCOVALVE® Series 134 is offered with a standard epoxy coated ductile iron gearbox. The gearbox is available with an acid resistant or offshore coating as well as in full ASTM A351 Gr. CF8M Stainless Steel on request.

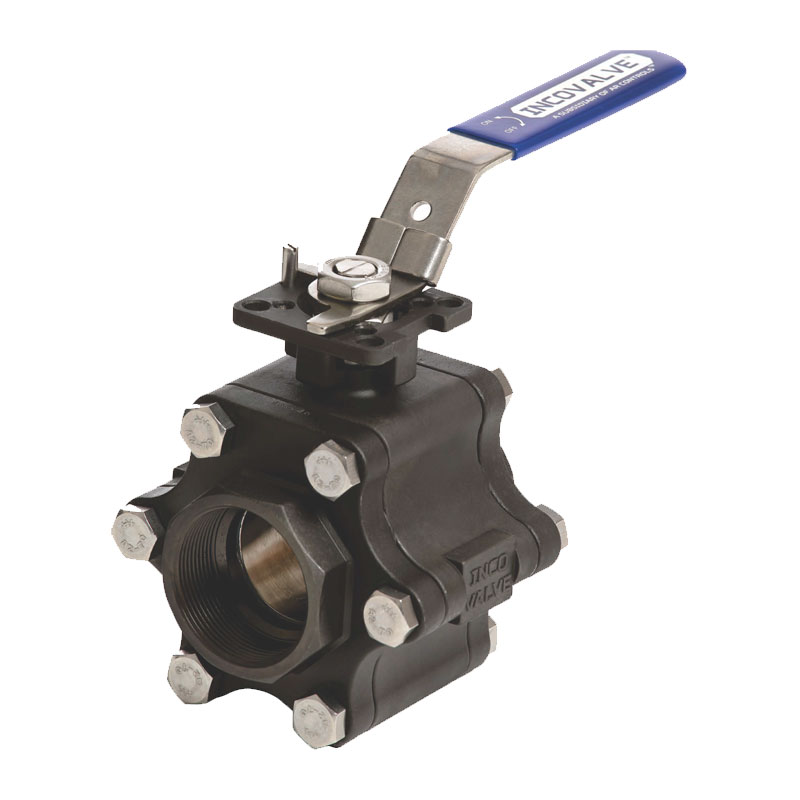

HAND LEVERS
The INCOVALVE® Series 134 has a standard, lockable stainless steel hand lever. Simply lift the locking pad to adjust the valve position. A hole is provided for a padlock for secure lockout during maintenance.
Description
- PRESSURE RATING: DN8 – DN50: 140 bar; DN65 – DNlO0: 100 bar/ 1/4″ – 2″: 2000 psi; 2½” – 4″: 1500 psi
- MOUNTING PAD: ISO 5211
- DESIGN STANDARD: EN12516-3
- BODY MATERIALS: STAINLESS STEEL & CARBON STEEL
- STANDARD SEAT MATERIAL: TFM1600
- BLOW-OUT PROOF STEM
- ANTI-STATIC DEVICE
- FULL PORT
- INTERCHANGEABLE SEATS WITH RELIEF GROOVES
- STANDARD LOCKABLE HAND LEVER
- END CONNECTIONS: ISO 228 / DIN 259 / DIN 2999 (BSPT) IANSI Bl.20.1 (NPT) I SOCKET WELD END I BUTT WELD END I
- OPTIONAL SEAT MATERIALS TO SUIT VARIOUS APPLICATIONS: PTFE I RPTFE (15% GLASS FIBRE REINFORCED) I PFA I PEEK I UHMWPE I 50/50 (316 55 + RPTFE) I METAL I 15% CARBON REINFORCED PTFE I TFM 1600 (MODIFIED PTFE) I 25% CARBON REINFORCED PTFE I 23% CARBON, 2% GRAPHITE REINFORCED TFM1600.
- TEMPERATURE RANGE: 40 ·c @ 140 bar; 90 ·c@ 125 bar; 190 ·c@ 40 bar
