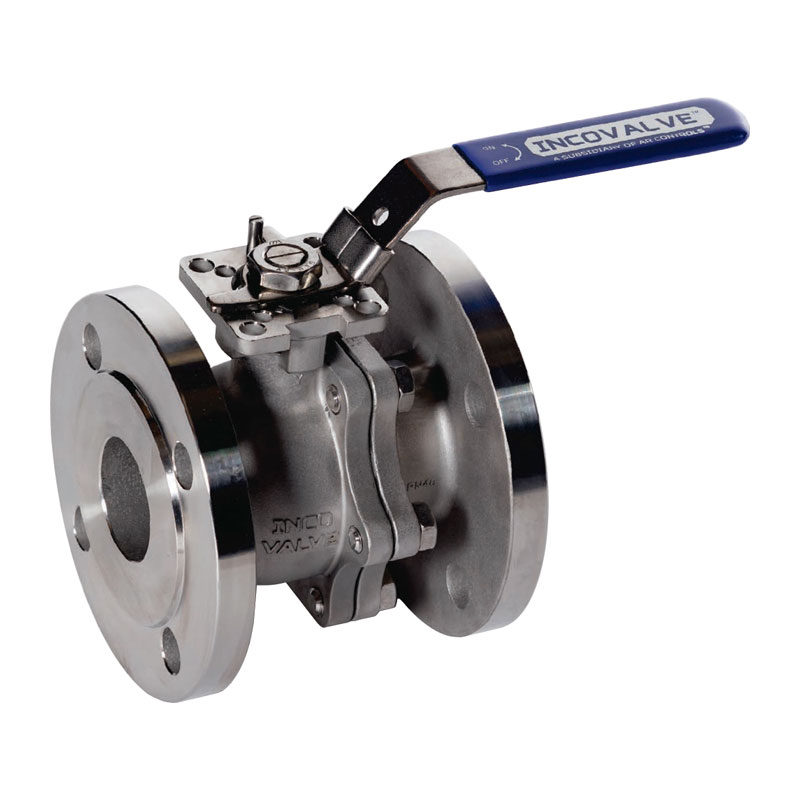

Series F16/F40 & F20/F50 Full Port Two-Piece Flanged Ball Valve
IncoValve’s F16/F40 & F20/F50 is a flanged, fire safe, floating ball valve featuring a split body and full port design. The F16/F40 & F20/F50 is designed to be robust and is manufactured to the highest quality standards in lncoValve’s world class manufacturing facility, offering superior service life, even in challenging industrial applications.
Description
- PRESSURE RATING: F16: PN10 / PN16; F40: PN25 / PN40 / CLASS 150 / CLASS 300
- SIZE RANGE: DN15 – DN200 (1/z” – 811 )
- BODY MATERIALS: STAINLESS STEEL & CARBON STEEL & SPECIAL ALLOY
- FIRE SAFE: API 607 7TH EDITION
- STANDARD SEAT MATERIAL: TFM 1600 (MODIFIED PTFE)
- OPTIONAL SEAT MATERIALS TO SUIT VARIOUS APPLICATIONS: PTFEI RPTFE (15% GLASS FIBRE REINFORCED) | PFA | PEEK | UHMWPE | 50/50 (316 SS + RPTFE) | METAL | 15% CARBON REINFORCED PTFE | 25% CARBON REINFORCED PTFE | MODIFIED TFM1600
- BLOW-OUT PROOF STEM
- ANTI-STATIC DEVICE
- FULL PORT
- V-PORT OPTIONS: 15°; 30°; 45°; 60°; 90°
- INTERCHANGEABLE SEATS WITH PRESSURE RELIEF GROOVES
- MOUNTING PAD: ISO 5211
- STANDARD LOCKABLE HAND LEVER
- TEMPERATURE RANGE: -20 TO 180°C
- DESIGN: EN 12516-1 / ASME B16.34
- FLANGE DIMENSIONS: EN 1092-1 TYPE 21 PN16/40 (RF SS)
- FACE TO FACE: EN 558-1 F4/F5 (DIN 3202 F4) / ASME B16.10
- PRESSURE TEST: EN 12266-1
