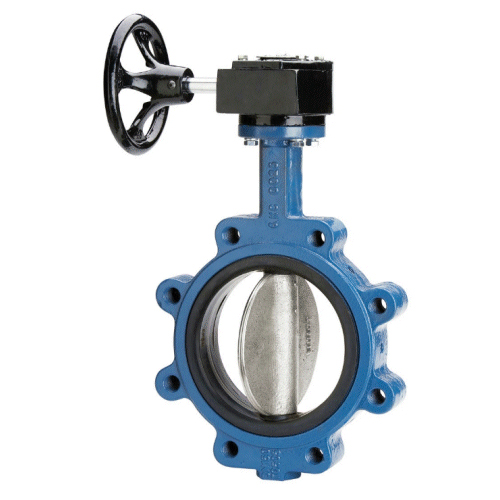

Dezurik Resilient On Center Seated Butterfly Valves (BOS-CL)
BOS-CL Resilient-Seated Butterfly Valves are designed to handle a wide variety of liquids and gases. BOS-CL valves are available in lugged or wafer bodies with Ductile Iron/Nickel Plated, 316 Stainless Steel or Aluminum Bronze discs.
BOS-CL Resilient-Seated Butterfly Valves feature an on-center disc; one-piece body; solid, one-piece shaft and a high-performance resilient seat bonded to a solid backing ring.
Description
SPECIFICATIONS:
- SIZE RANGE: 1-1/2-24″ (40-600mm)
- TEMPERATURE RANGE: to 350°F (176°C)
- PRESSURE RATING:
- 200 psi (1379 kPa) for sizes 1-1/2-12″
- 150 psi (1034 kPa) for sizes 14-24″
- BODY MATERIAL: Cast Iron
