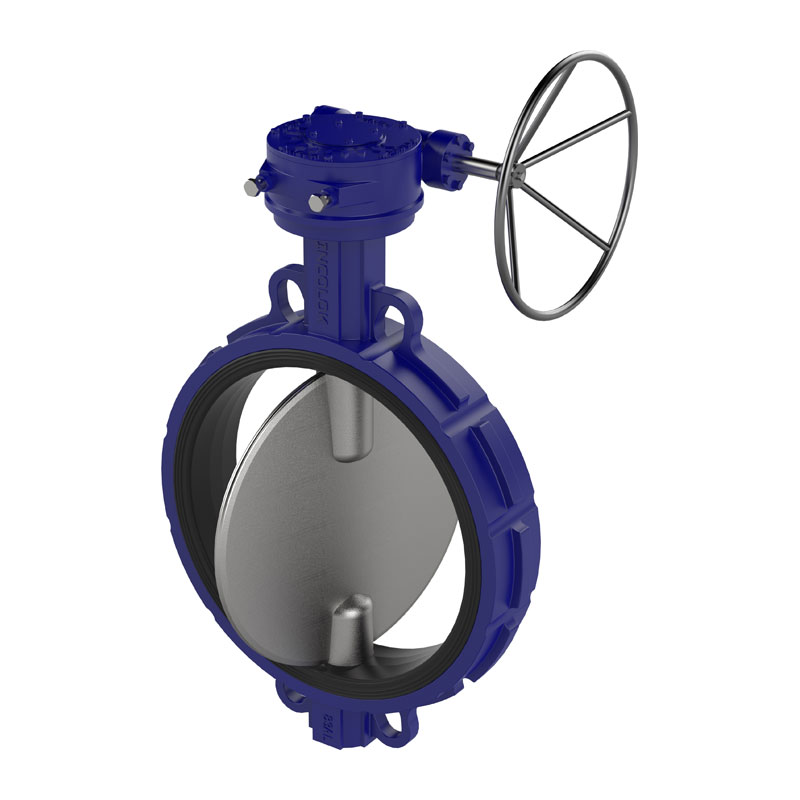

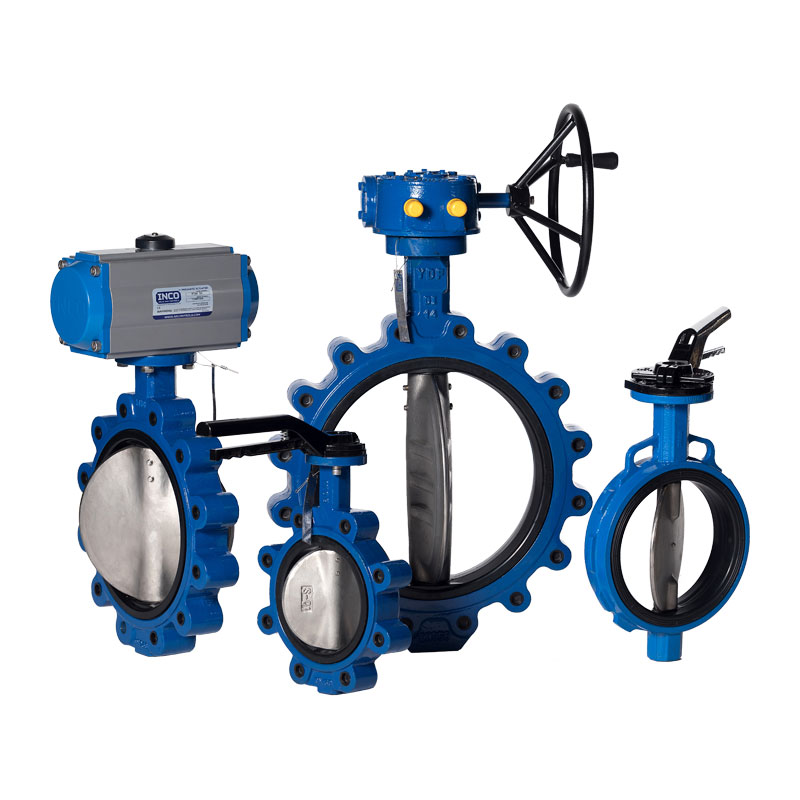

Series 100 Resilient Seated Butterfly Valve
The IncoLok® S100 is a resilient seated concentric butterfly valve that is available in a wide range of trims to suit a wide range of applications. The cartridge-style seat offers superior performance in vacuum and dead end service, and is easy to replace.
Description
- PRESSURE RATING: PN10- PN20
- SIZE RANGE: DN40 – DN1800 (11/,11 – 70″)
- BODY MATERIALS: DUCTILE IRON, STAINLESS STEEL, CARBON STEEL & SPECIAL ALLOY
- SEAT MATERIALS: EPDM, BUNA-N, FKM, PTFE, SILICONE, NEOPRENE
- SHUTOFF RATING: Bl-DIRECTIONAL BUBBLE TIGHT
- MOUNTING PAD & STEM: ISO 5211
- STANDARD LOCKABLE HAND LEVER
- TEMPERATURE RANGE: -35°C TO 150°C
- DESIGN: API 609; ASME B16.34
- VALVE INSPECTION & TESTING: STANDARD: API 598
- CERTIFICATIONS: CE/PED; API 609
