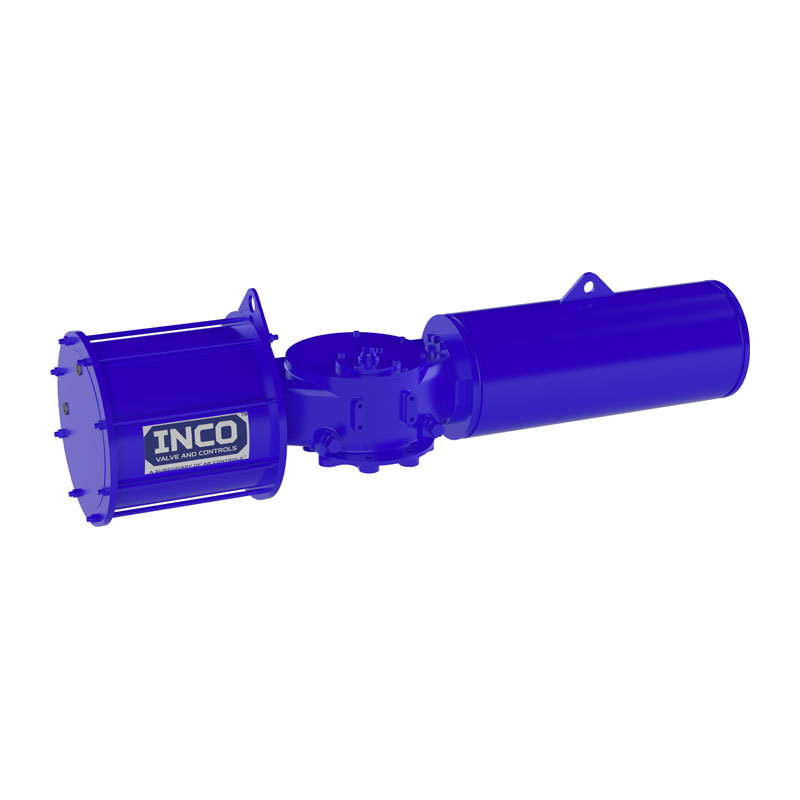

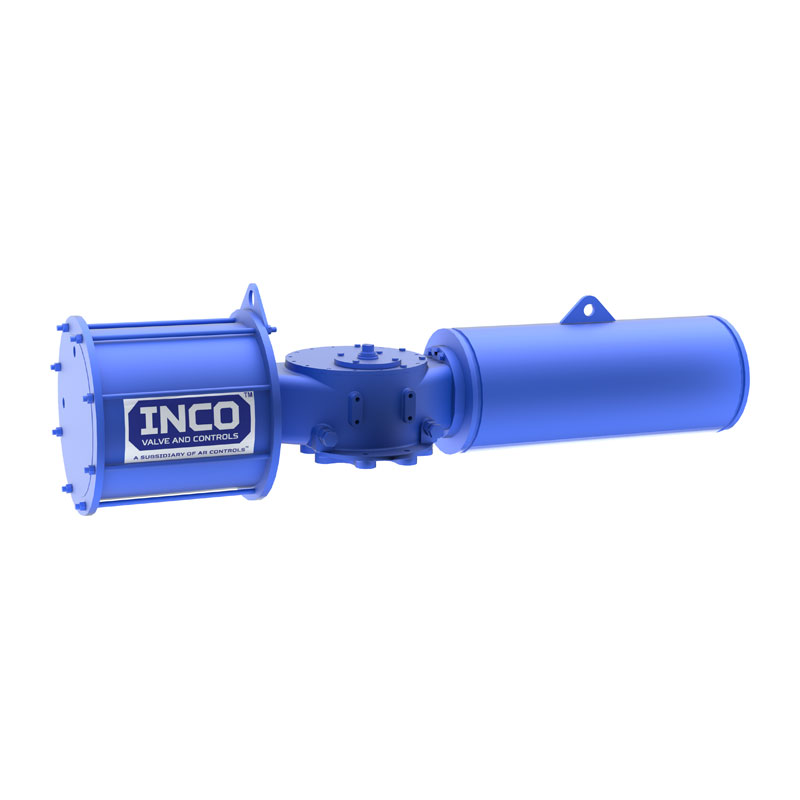

Series HPY Scotch Yoke Pneumatic Actuator
The HPY Series are designed for years of reliable service with a corrosion resistance polyurethane paint finish and an advanced water ingress design. The lightweight and compact design are ideally suited for automating any quarter turn valve. With a wide selection of options, the HPY series will meet your most demanding valve automation needs.
Description
Technical Data
- Supply Media: air, nitrogen, etc.
- Torque Outputs (guaranteed)
- Double-acting: 1,965 – 2,352,719 in.lbs (222- 257,281 Nm)
- Spring-return end torques: In excess of 1,138,413 in.lbs (128,641 Nm)
Operating Pressures:
- Pneumatic: 40-200 PSIG (3-12 BAR)
- Hydraulic: To 5,000 PSIG (345 BAR)
Operating Temperatures:
- Standard Temperature: -20°C to + 80°C (-4°F to +176°F)
- High Temperature: -15°C to +160°C (5°F to + 320°F)
- Low Temperature: -40°C to + 80°C (-40°F to + 176°F)
- Extreme Low Temperature: -60°C to + 80°C (-76°F to + 176°F)
- Hydraulic Standard Temperature: -20°C to + 80°C (-4°F to +176°F)
- Hydraulic Low Temperature: -40°C to + 80°C (-40°F to +176°F)
